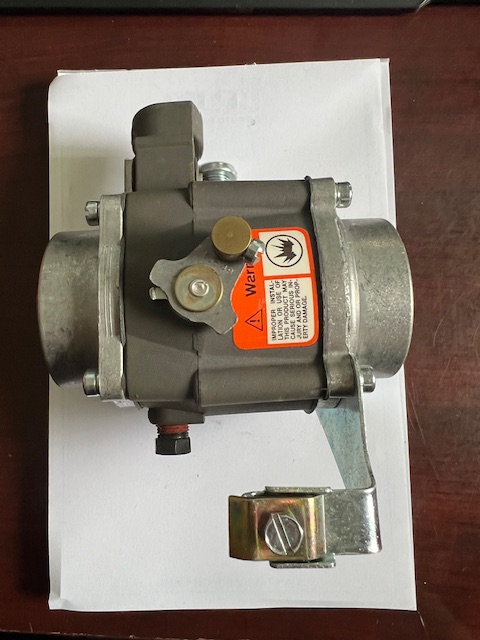

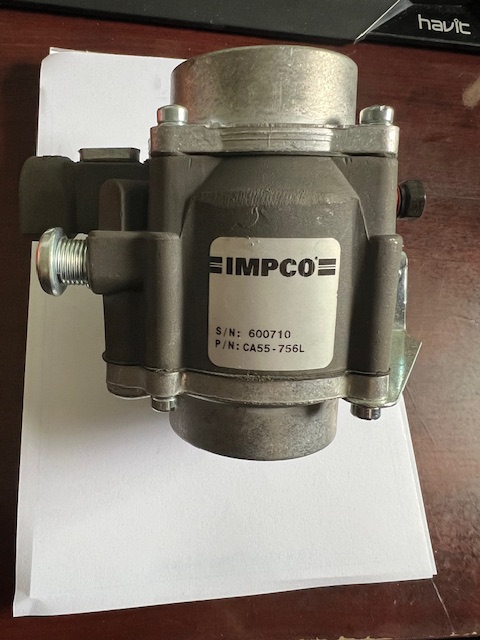

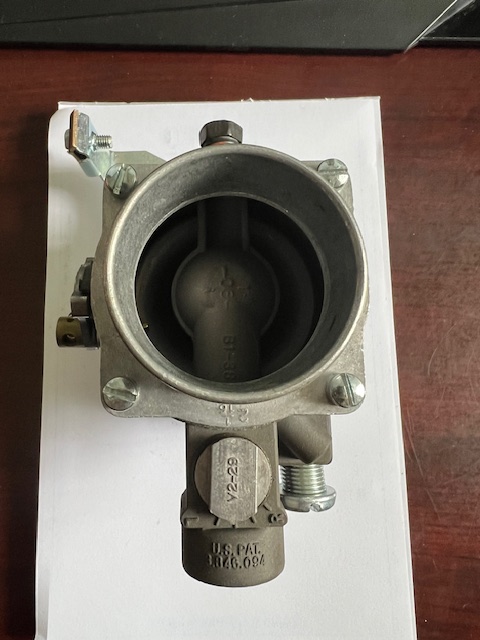

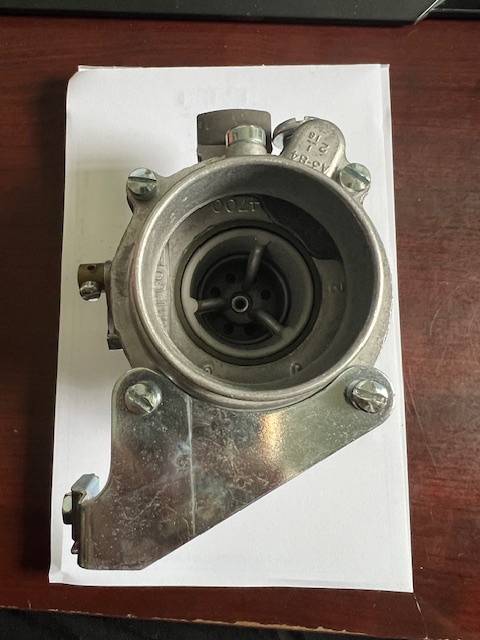

NEW IN BOX Carburetor Dual Fuel Mixer CA55-756L

DESCRIPTION
IMPCO’s CA55 model carburetors are offered in four design variations, providing proven, effective
solutions for optimum metering and delivery of either LPG vapor or Natural Gas. The standard model can be
mounted in either an updraft, downdraft, or side draft orientation, supplying either LPG or Natural Gas to
engines up to 73 hp (54.0 kW), with a flow rate of 118 CFM (55.7 L/s). Various SAE flanges and air horn sizes
are available.
SPECIFICATIONS
Fuel Type .........................................LPG Vapor or Natural Gas
Inlet Pressure ...................................-1.5” w.c. (-0.37 kPa)
Operating Temperature Range.........-40°F to +250°F (-40°C to +121°C)
Mounting Position.............................Any
Diaphragm Material ..........................N/A
HP/kW Rating...................................Up to 73 hp (54.0 kW) @ 118 CFM (55.7 L/s) and 2.0” Hg
manifold depression
